![](/-/media/Hatch-Corporate/Projects/Services-and-Technologies/AnlingColibox.jpg)

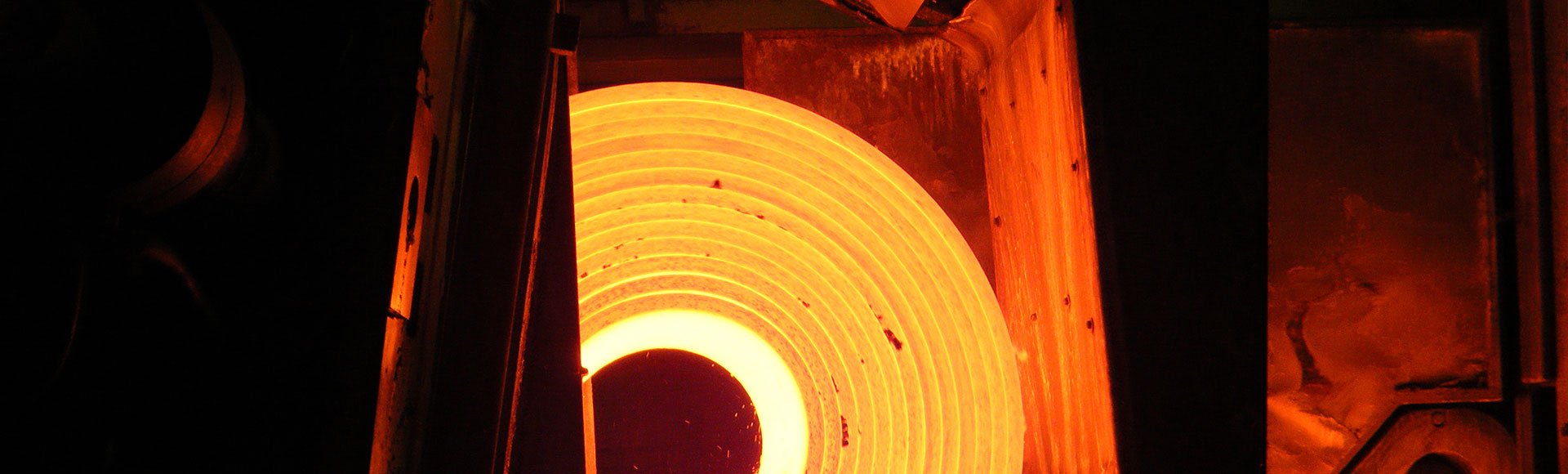

Anling 1700 mm Coilbox™
High-performance Coilbox™ to support modern, greenfield hot strip mill
Ansteel Chaoyang Anling Steel & Iron Co. Ltd. | China | 2009–2011
Highest
operational Coilbox™ thread speed of up to 5.0 m/s
Simplified
coil mandrelless transfer mechanism
High
coiling performance with consistent round coil for all conditions
Challenges
- Ansteel was planning a new, high-performance greenfield hot strip mill in Chaoyang, China.
- It required a Coilbox™ to allow maximum processing flexibility for a wide variety of products and operating conditions.
Solutions
- Inexperienced domestic suppliers were considered, but ultimately Ansteel turned to us for our world-class, leading coilbox technology.
- The Hatch Coilbox™ demonstrated the processing speeds and reliability required for the new hot strip mill.
Highlights
- The Anling Coilbox™ has the highest coilbox thread speed of 5.0 m/s and the highest reliability of coiling with no ovality.
- The new Coilbox™ has a simpler mandrelless transfer system than previous designs.
- The new Coilbox™ has the most flexible operator interface to allow for manual intervention when needed.
Project numbers
5.0 m/s maximum reliable thread speed5.5 m/s maximum reliable run speed
3 seconds is the shortest stopping time between end of coiling and start of uncoiling
